The Cirrus3D are 3D sensors designed for industrial use. They are used to "digitize" a working zone, which means that after processing images with the integrated hardware, they provide a list of 3D points coordinates. This list of 3D points is called a "cloud of points". Cirrus3D has been given the name of a cloud Cirrus for this reason.
ULTRA RAPID SCAN
Min. 0,2 seconds
AUTONOMOUS SENSOR
« Plug & Work »
SEALED CONNECTORS
Power supply and Ethernet RJ45
ADAPTATIVE COOLING
For a better thermal stability
HIGH-PERFORMANCE INTEGRATED PROCESSOR
To calculate 3D points from raw images
5MP CAMERA
For high resolution
HIGH PROTECTION RATING (IP 65)
Compatible with hostile environments
3D Cameras

Made in
France by

The +

Dedicated to industrial use, these 3D cameras are not sensitive to the environment, dust or variations in light levels, to guarantee unrivalled reliability and robustness of your installations (IP 65). Assembly, inspection, identification and localization of individual or bulk parts are just some of the industrial applications in which the Cirrus3D range will bring you process reliability and an excellent return on investment.
processeur
Ultra-powerful integrated processor for 3D point calculation
capteur
CMOS sensors and lenses specially designed for high resolution
connectique
Sealed industrial connectors
refroidissement
Adaptative cooling for improved thermal stability

Why

choose a Visionerf 3D camera ?

Ever since the first-generation Cirrus3D camera launched in 2015, Visionerf has constantly improved its products to provide its customers with a high-end scanner capable of operating in the most demanding, dusty and humid environments such as foundries. The unique design of this camera, based on the principle of high-resolution stereoscopy, enables very small elements to be viewed with great precision in an extremely short time. Combined with powerful structured light, the quality of information remains constant on a wide range of materials. From black to high-gloss, measurement reliability remains at the highest level. The choice of top-of-the-range components contributes greatly to the robustness and reliability of these products. And Cirrus3D sensors can work with all cloud of points processing softwares on the market, either using the GigE/Genicam satndard protocol, or using our SDK (Software Development Kit) provided free of charge with each sensor.

For

which purposes

Today, our Visionerf 3D cameras are used in all sectors of activity, for precise handling of parts of all sizes (screws, mechanical body parts), for robot guidance in high-volume applications (from automatic detection of potential gas leaks on refrigerators to automatic changeover of drilling tools on giant tunnel boring machines), and for monitoring and inspecting products directly on production lines.

Our range of 3D cameras


Cirrus3D
Scanner
Cirrus3D scanners are used to scan static parts like parts randomly placed in a bin or parts on a conveyor which stops during the scan time. It is typically used for inspection or for robotic applications like bin picking, rack loading, or deburring. Cirrus3D scanner can learn the coordinate sytem of the robot and then transmit the 3D points in this coordinate system, to simplify the tasks of the processing software.
Cirrus3D
Linear
Cirrus3D linear sensors are dedicated to scan parts moving on a conveyor belt. The Cirrus3D can learn the coordinate system of the conveyor (axis and plane) and then send the 3D points in this coordinate system, to ease the processing of the 3D points by the software. Cirrus3D linear can also be used to scan big parts when mounted on a linear axis, or to scan parts during their rotation, like for the inspection of brake discs.

Sensor
Manager

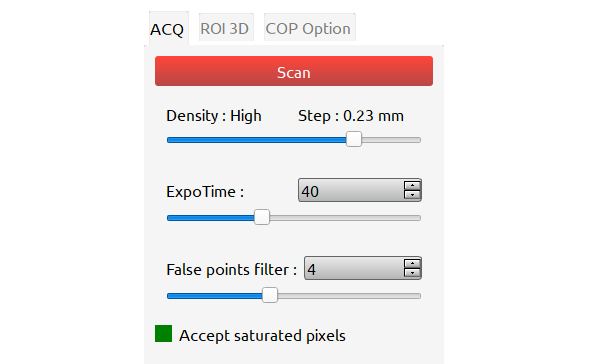

"Sensor Manager" is the name of the software used to setup all parameters of the Cirrus3D sensors. It is simple to use and is available for Linux and Windows systems. If required, all parameters can also be adjusted without this software, using dedicated TCP/IP or GigE/Genicam commands.

There is no need to be an expert in vision or cameras to get beautiful cloud of points in just a few minutes.

1. First, take a scan of your parts to get an initial idea.

scan de pièces

2. Then you can choose the cloud of points density and the sensor sensitivity.

densite de points

3. Finally, you cand adjust the working volume of the sensors to reduce the scan time.

scan
